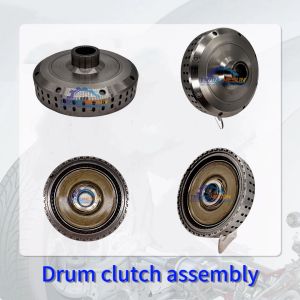

09G TF-60SN CVT automatic transmission K1 drum clutch assembly

Product Categories

Guangzhou Meishun Automatic Transmission Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 09G TF60SN CVT automatic transmission K1 drum clutch assembly
Brand: Volkswagen Passat
Price: 1 USD

Brand Name : Volkswagen Passat

Model Number : 09M; TF-60SN

MOQ : 1

Price : 0-1000

Payment Terms : T/T

Delivery Time : 5-8 work day

Packaging Details : Paper box or wooden box

Year： : 2007-

MODEL： : 09M; TF-60SN

SIZE : 15X15X15CM

Brand： : Volkswagen Passat

Item Weight : 2.5kg

ＯＥＮＯ : 09G TF-60SN

Applicable Brand : Shuttle; Golf; CC. Skoda: Horiseon; Miro; Speedo. Mini: mini

Contact Now

Function: 1st/3rd/5th gear engagement in VW/Audi transverse 6-speed applications.
Design:
- 3-piston clutch pack (5 friction plates, 6 steel plates)
- Drum material: Hardened aluminum (Si-Cu alloy) with anti-wear coating
Critical Tolerances:
- Plate clearance: 1.2–1.6mm (new), >2.0mm requires replacement
- Piston stroke: 2.8–3.2mm
Failure Modes:
- Seal leaks (causing delayed engagement)
- Drum spline wear (>0.2mm play leads to shudder)
- Overheating (if ATF degraded, causing plate glazing)

Note: Uses VW G 055 025 A2 fluid; common failure in high-mileage units.

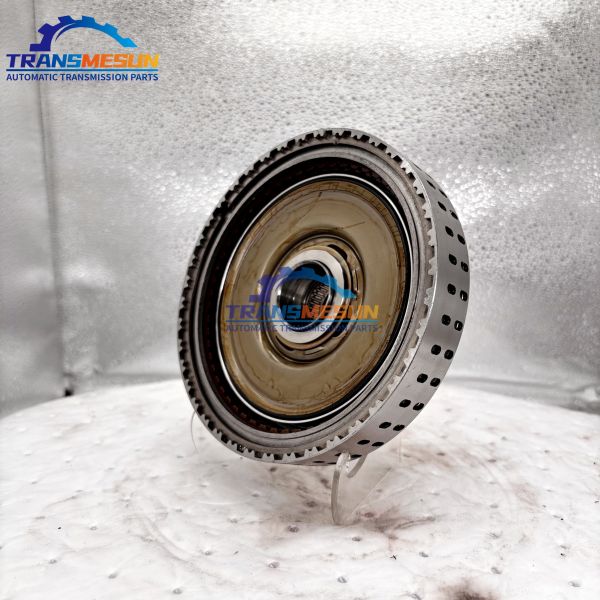

09G TF-60SN CVT automatic transmission K1 drum clutch assembly
